Heishin Controller
DPU-F600 series

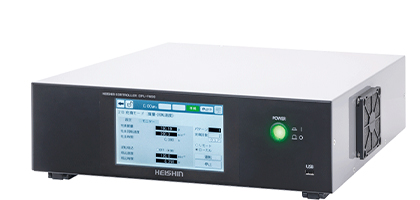

DPU-F650

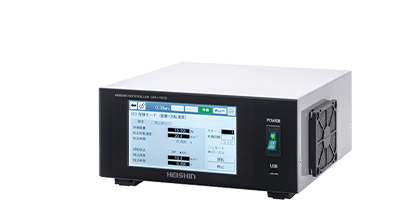

DPU-F610
Product Features
These multi-function controllers for Mohno Dispensers can be used for a wide variety of applications.
Automatic calculation of rotational speed based on the application shape
A new function makes setup even easier by automatically calculating the rotational speed just by entering the application shape.
Field network support
EtherNet/IP® connectivity is available as an optional feature. This makes it possible to reduce wiring between devices.
Setting data and operation history saving
Save all the information stored in the controller to make investigating the causes of errors easier.
※EtherNet/IP is the registered trademark of ODVA, INC.
Specifications
Choose from a standard model and an HD-specific model to suit the type of Mohno Dispenser being used. CE Marking specifications are also available from April 2025.
■DPU-F650 Standard model
| Applicable motor capacity | 50 W, 100 W, 200 W, 400 W, 750 W |
|---|---|
| Power supply | Single-phase 100 to 115 V AC Single-phase 200 to 230 V AC Triple-phase 200 to 230 V AC |
| Weight | 10 to 11.5 kg |
| Protection rating | IP20 |
| Optional | Power cable, motor cable, encoder cable, pressure sensor, foot switch |
Different power supply specifications that can be selected according to the capacity of the motor being used are available. Contact Heishin for details.
The control programs are not publicly available.
■DPU‒F610 HD-specific model
| Applicable motor capacity | 10W |
|---|---|
| Power supply | 24 V DC |
| Weight | 4.7kg |
| Protection rating | IP20 |
| Optional | Power cable, motor cable, encoder cable, pressure sensor, foot switch |
The control programs are not publicly available.
